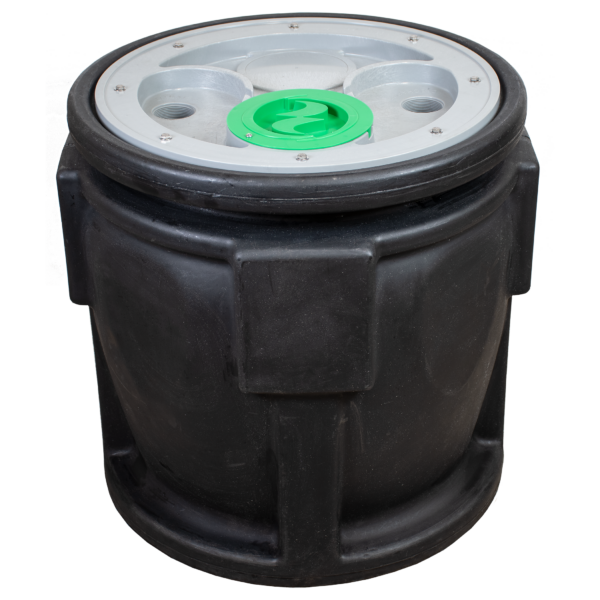

Zoeller 912 Series 1/2HP 24" X 24" Preassembled Sewage Systems
Our Model 912 is a preassembled sewage ejector package that comes with all of the key components required for installation. It is ideal for those looking to install a job ready sewage ejector system. Purchasing a job ready package reduces installation errors while minimizing cost.
- Preassembled sewage ejector package for a job ready, fast, and easy install
- Package is pre-plumbed with our popular Model 264 Sewage Pump with a piggyback float switch on a float tree for easy inspection and maintenance
- 24” x 24” polyethylene cover and basin with a 4” inlet, 2" vent, 2" discharge, and twist lock observation port
- As with all Zoeller pumps, the Model 264 is 100% Factory Tested
- The Model BN264 sewage pump is built with an engineered plastic base and vortex impeller capable of handling 2" spherical solids reducing the chance of clogs and downtime
- The pump's 115 V electrical cord seal is sealed in the cover
- The pump switch is installed 180° from the 4" inlet to prevent the float from being affected by the inflow of raw sewage
- The discharge pipe is plumbed with a pre-drilled 3/16” weep hole to prevent the pump from becoming air-locked
- The polyethylene cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor
- The clear construction cover can be removed once the concrete is poured and finished
- 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
The Model 912 sewage ejector package is designed for burial flush-to-grade. The access cover is the only part that is visible after installation.
The package comes preassembled in an 24″ x 24″ polyethylene structural foam (PSF) basin. It includes our Model 264 automatic sewage pump. The Model BN264 is a 4/10 HP pump. The vortex impeller design of the Model BN264 allows the pump to pass 2″ spherical solids limiting the potential for clogging and unwanted downtime.
The basin comes complete with a 2″ PVC discharge pipe that includes a predrilled 3/16″ weep hole to prevent the pump from becoming airlocked. The basin’s cover includes a cord seal for the pump’s electrical cord along with a predrilled 2″ vent hole. Additionally, the cover includes a twist-to-lock observation port for inspections and float access. The basin also ships with a clear construction cover to protect the basin lid while doing finish work around the basin cover. The cover is sealed in place prior to shipment. The pre-plumbed 4″ inlet hub makes for a quick connection to the main sewage line.
Job ready, fast, and easy installation!
