Zoeller 912 Series 1/2HP 24" X 24" Preassembled Sewage Systems

by Zoeller
Sale
Original price $525.00
Current price $499.85
SKU 912-1144

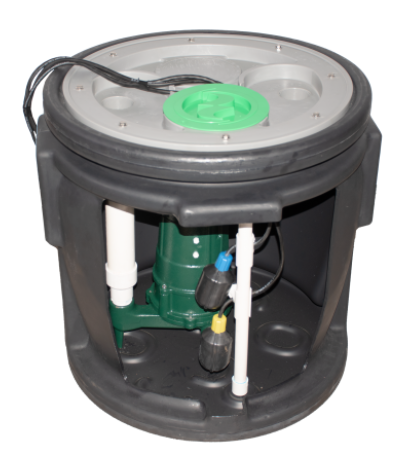

Preassembled 24" x 24" (61 x 61 cm) Sewage System. Complete and job ready for fast installation with new PSF cover designed with the Contractor in mind.

System Include

  • 1) 2” (50 mm) solids sewage ejector
  • (1) 24” x 24” (61 x 61 cm) poly-molded basin
  • (1) PSF cover with 2V2D
  • Internal 2” (DN50) PVC discharge pipe
  • 1/2 HP Model BN266 Pump
  • Piggyback Switch

Pump Features

  • Cast iron construction
  • Thermoplastic construction
  • Piggyback configuration
  • Full 2” (50 mm) spherical solids capacity
  • Thermal overload protection
  • Non-clogging vortex impeller
  • 3 year limited warranty on Model

Basin / Cover Features

  • Shipped with clear construction cover
  • Easily removable access port, no bolts to remove
  • Removable float tree
  • Molded torque stops for added pump support
  • Threaded 2" vent and 2" discharge piping connections
  • 24x24 basin for shallow burial applications
  • 24" (61 cm) depth for easier installation in troublesome areas
  • 41 gallon (155 liter) capacity (exceeds 18 x 30)
  • 25 gallon (95 liter) capacity below 4" inlet
  • Anti-flotation device (AFD) helps to eliminate basin from "floating”
  • 360° molded handle (acts as secondary AFD)
  • Fully assembled
