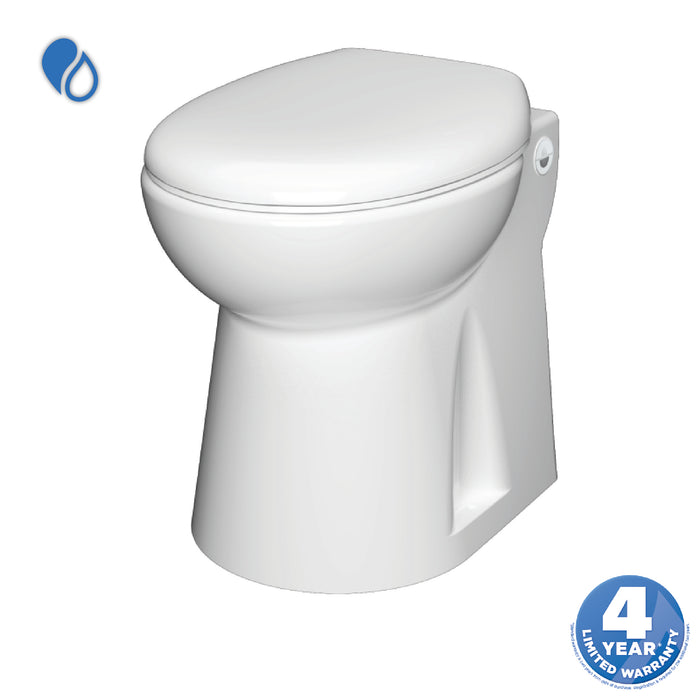

Saniflo 024 Sanicompact 4C 1/2 HP Toilet System
The Sanicompact® 4C is a self-contained dual-flush toilet system used to install a half-bathroom up to 9 feet below the sewer line, or even up to 120 feet away from a soil stack. It incorporates a macerating system which can handle human waste and toilet paper in residential applications. The blade is made of a hardened stainless-steel material which eliminates the need for any service or replacement. The Sanicompact® 4C is a combination of a vitreous china toilet bowl and macerator/pump built into one compact unit.
This unit is specifically designed to overcome several common plumbing obstacles:
1 - Compact and flexible design for cramped areas with limited space.
2 - Eco-friendly; uses a minimum amount of water.
3 - Easy to clean with its sleek, glossy porcelain finish
4 - Comfortable design for people that have physical limitations.
Overcomes needing gravity flow toilet tank: The floor mounted Sanicompact 4C needs no gravity flow tank as the flushing action and macerating pump cycle is automatic after pressing a push button on side of the bowl. The flushing mechanism is electrically timed to allow water to pass through the toilet.
How Sanicompact 4C works? By pressing the push button, this activates a timer and a solenoid valve, in order to fill and wash the sides of the bowl. The motor starts and the waste and paper are sucked inside where it is macerated and pumped away. The motor stops after approximately 10-15 seconds and the timer programs the refill of the bowl with fresh water.
Eco-Friendly System: The standard dual flush version uses 1.28 gpf (4.8 lpf) and 1 gpf (3.8 lpf). To choose either option, the unit is provided with a dual push button. This option allows using less water than any regular toilet but with the same efficiency.

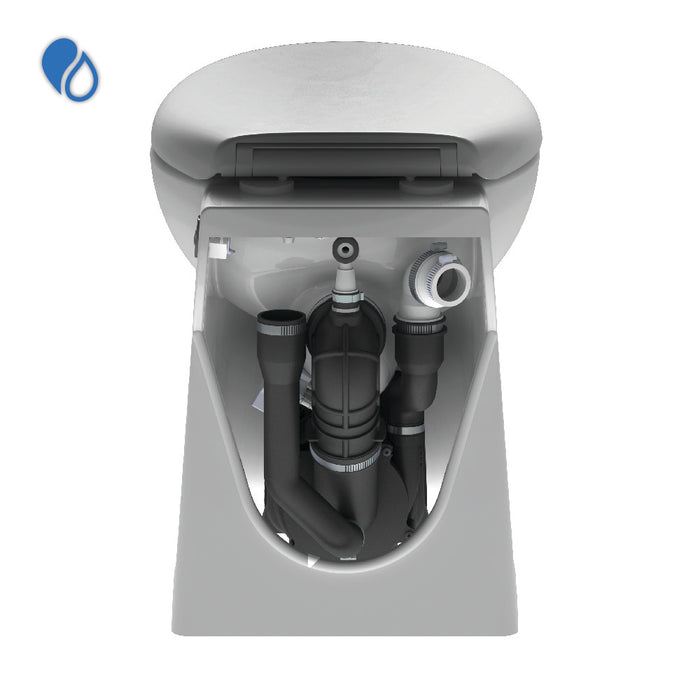

Self-Contained Pump Motor: The inside of the Sanicompact 4C porcelain comprises of a pressure switch and circuit board assembly, which starts and stops the unit, and the motor, which drives the blade and the pump. The motor is sealed for life in an oil filled enclosure. A common spindle/shaft drives the impeller and the macerator blades. The moving parts therefore are kept to an absolute minimum. Water and organic waste matter, enter the chamber and are reduced to slurry as the macerator blades rotate at 3600 RPM. The reduced solids are picked up and the impeller mounted beneath the motor ejects the waste. The unit pumps the effluent upward to 9 feet and/or 120 feet horizontally (with gravity fall).
Flexible Connection/Discharge - The discharge elbow on the back of the Sanicompact 4C can be rotated 360 degrees to fit any type of installation required. A non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit.

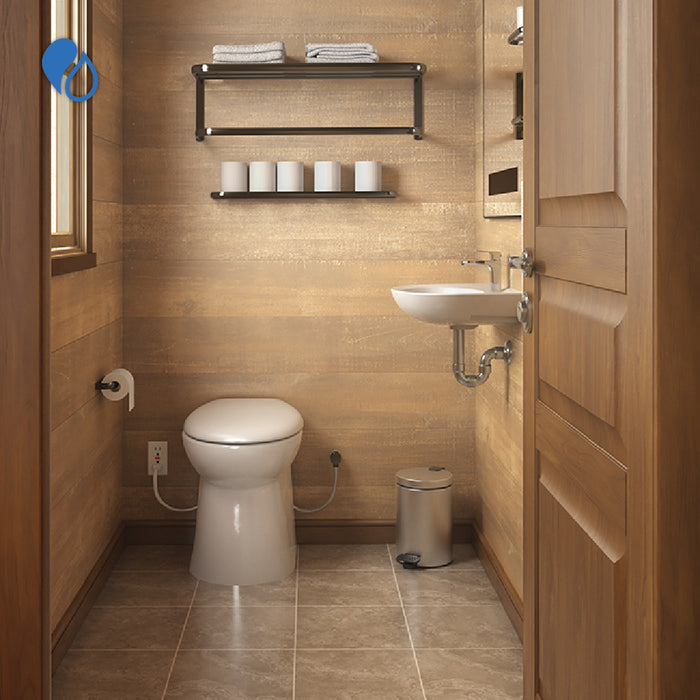

Half Bathroom Connections: The floor mounted Sanicompact 4C will also discharge gray water from a sink. The wastewater drains into a 1 1/4" hose connection in back of the toilet. The system turns on automatically once water is drained through a sink.
Space-Saving Venting: The Sanicompact 4C is a forced main and does not need to vent and connected to a vent stack. Other fixtures may need to be vented as per local plumbing codes.
It is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter (GFI) circuit.
The Sanicompact 4C has been certified to American and Canadian Standards. Macerating standard; US: CSA Certified - ASME A112.3.4, CA: Macerating Standard CSA B45.9.
Key Features
- For half-bathroom applications
- 1 inlet: 1-1/4” (toilet discharge integrated)
- Standard dual flush (1 GPF or 1.28 GPF)
- Discharge ↑ 9 Ft ↑ and/or ← 120 Ft →
- Handle black and gray water
- Eco-friendly Water saving dual-flush system
- Floor mounted macerator/pump encased in the vitreous porcelain toilet bowl
- Includes soft-close toilet seat.
- Certifications: CSA (IPC, NSPC)
- 4 Years limited warranty
