Prier C-534BX4 Commercial Hydrant Box

by Prier
$95.00
SKU c-534BX4

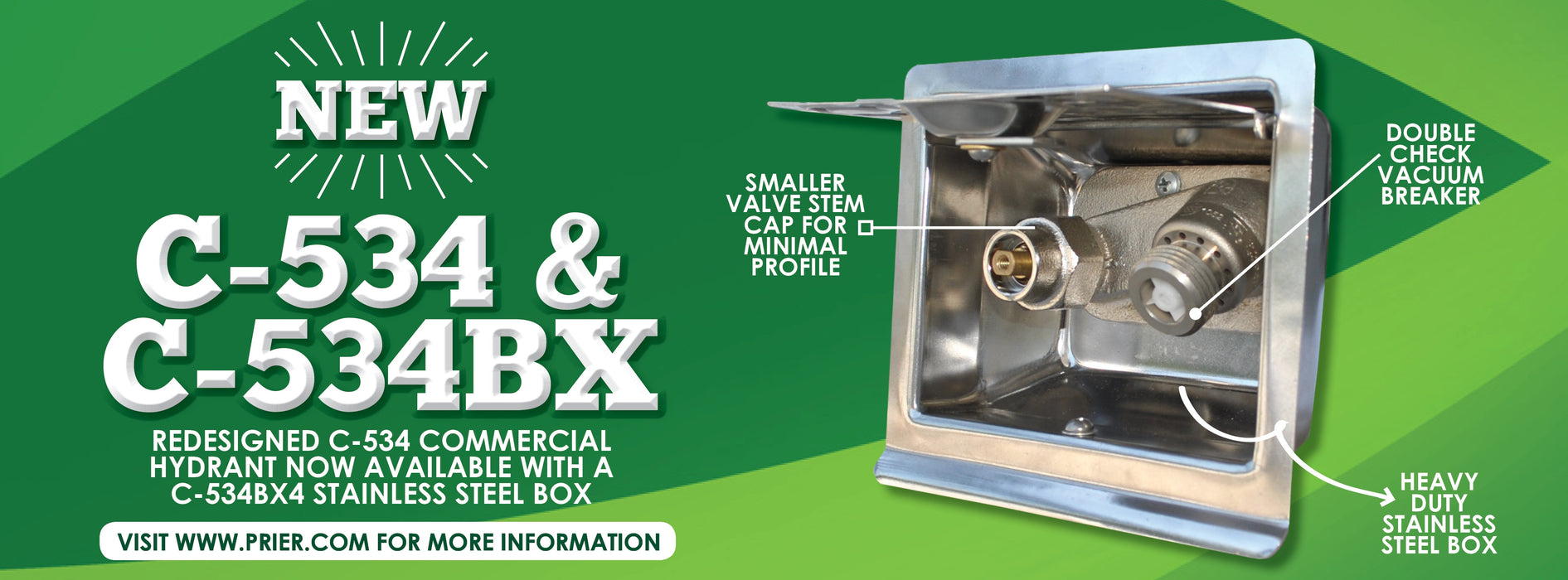

The stainless steel C-534BX4 is the perfect complement to the commercial wall hydrant it protects. This unique box can be mounted in the structure independently of the hydrant giving flexibility to the installer to add the hydrant when it is convenient for their schedule.  The door of this box has a special hinge that is designed to stay open when the end user is operating the hydrant.  It won’t flop down on the hose or get in the way on the side of the box.  Finally, the box has a drip edge that prevents water from draining down the side wall and causing discoloration to the building.  This new C-534 valve and box is the perfect match for those commercial construction projects that need a reliable attractive product. Additionally, it adds flexibility as the box can be installed by a brick mason or general contractor and the plumber can come later to install the valve through the front of the box and plumb it when it is convenient for their schedule.


  • Double check valve and anti-siphon vacuum breaker
  • Drains automatically with hose attached
  • Short valve stem cap for smaller profile in box
  • Integral cast flange with built-in drainage pitch
  • Solid brass body, valve stem cap, seat and stem ends
  • Satin nickel plated body maintains attractive finish
  • Optional stainless steel hydrant box sold separately
  • Multiple vent holes ensure proper draining and reduce problems associated with insect nesting
  • Designed to last the life of the plumbing system
  • Patented PRIER “triple seal” positive shutoff system offers triple redundancy to assure shutoff
  • High flow rate, 9 GPM at 25 PSI differential
  • Same key operates box lock and hydrant
