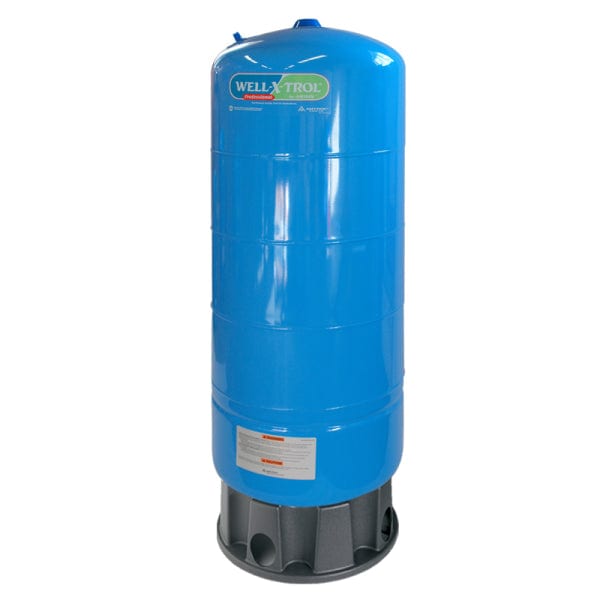

Amtrol WX-203D Well Pressure Tank w/ Durabase
Amtrol is solving your home water pressure problems with the Well-X-Trol—the company that invented the first pre-pressurized well tank over 50 years ago as a better solution to traditional air-over-water tanks.
This industry-leading well pressure tank delivers of 150 PSIG working pressure and uses an innovative hoop ring and groove design to lock the diaphragm, liner, and shell together—it's built to stand the test of time! Well-X-Trol is the world’s most trusted brand of well tanks, backed by an industry leading 7-year limited warranty.
Key Features:
- 150 PSIG working pressure
- High-strength steel shell for long-lasting durability
- Antimicrobial liner that neutralizes bacteria on contact
- Projection welded air valve
- Patented Turbulator water circulator
- 304L stainless steel system connection
- 7-year limited warranty
- Max. opterating temperature: 200º F (93º C)
- Max. working pressure: 150 PSIG (10.3 bar)
- Max. Relief valve setting: 125 PSIG (8.6 bar)
- Includes Amtrol Durabase
Specifications:
Manufacturer: Amtrol
Model Number: WX-203
Material: Steel
Capacity: 32 gallons
Item Weight: 47 lbs
Product Dimensions: 15 x 47 inches
Colour: Tuf-Kote, HG Blue, Tan, or Gray
Drawdown @ 40/60 PSI: 8.6 gallons
Drawdown @ 30/50 PSI: 9.9 gallons
Power Source: AC/DC
Benefits and Advantages:
Owning a Well-X-Trol grants you the following benefits:
- Extended pump life
- Water storage between pump cycles to meet the peak water demand
- Acts as a reserve in case of a power failure
Usage or Application:
The Well-X-Trol controls pump cycling in residential water systems and can be used indoors or outdoors. Patented DuraBase stand is rugged; never corrodes.
