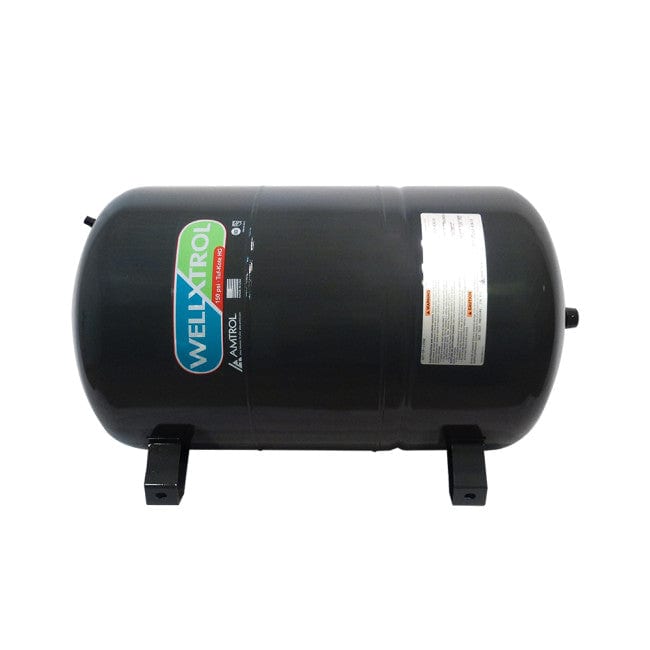

Amtrol WX-202-H Well-X-Trol 20 Gallon Water System Horizontal Pressure Tank

by Amtrol
SKU WX-202-H
In stock
Original price $389.55 - Original price $389.55
Original price
$389.55 - $389.55
Current price $389.55
Size: 20 Gallon

During times of emergency and sudden water shortages, the Amtrol WX202 20 Gallon Well Pressure Tank has got you covered. Its revolutionary design uses a hoop ring and groove to lock the diaphragm, liner, and shell together.

Key Features:

  • Comes with a deep-drawn steel and multi-dome construction
  • Diaphragm made of heavy-duty butyl
  • Tuf-Kote HG—the toughest indoor/outdoor coating
  • Patented DuraBase® Composite Stand, corrossion-resistant
  • Optional Pro-Access® Connection for faster installation
  • Patented Turbulator® Water Circulation Device.
  • Patented Antimicrobial Liner
  • Stainless steel system connection.
  • Welded air stem to help eliminate leaks.
  • 7-year warranty


Shell: High-strength steel
Diaphragm: Heavy-duty butyl
Liner: Antimicrobial
System Connection: 304L stainless steel
Steel or Patented DuraBase
Finish: Tuf-Kote HG Blue, Tan or Gray
Water Circulator: Patented Turbulator
Air Valve: Projection Welded
Factory Precharge: 38 PSIG (2.6 bar)
Max. Operating Temperature: 200º F (93º C)
Max. Working Pressure: 150 PSIG (10.3 bar)
Max. Relief Valve Setting: 125 PSIG (8.6 bar)

Benefits and Advantages:

Supporting your plumbing system with this well pressure tank gives you these benefits:

  • Clean water supply
  • Peace of mind thanks to its reliable design
  • No more water leaks
  • Reduced mineral build-up

Usage or Application:

Use the Amtrol WX202 Well Pressure Tank to control the pump cycling in residential water systems. You may install it indoors or outdoors.
